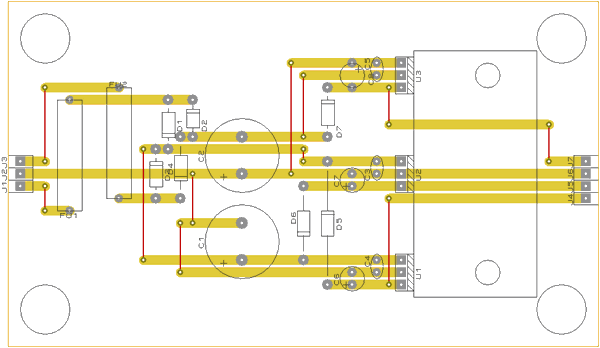

+/-15V and 5V board
![Click to enlarge](images/benchpsu/layout1_small.gif)
+/-9V and +/-12V board
![Click to enlarge](images/benchpsu/layout2_small.gif)
Note that the regulators on this second board are actually too close together (I didn't realise this until I'd already prepared the stripboard), so they had to be bent alternately forwards and backwards to make them fit. So if you're going to build this, leave an extra 1 strip gap between them.
