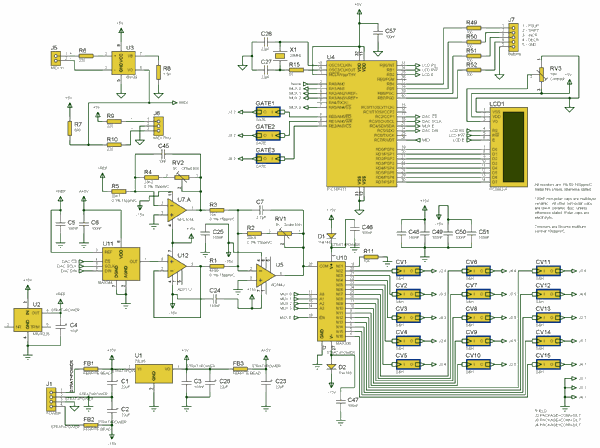

Fat Controller - Schematic
![Click to view printable version of this page](images/print_logo.gif)
![Click to enlarge](images/fatcontroller/schematic_small.gif)
GATE sub-circuit | S&H sub-circuit |
![]() |
![]() |
Note that the 3 gate outputs have no protection against being patched into another output by mistake. To safeguard against damaging the 2N3904 output transistors it is recommend to put a 100R resistor in series with each gate output. This will protect against connecting to voltages up to 20V.
More ..
