4xD - PCB layout
PCB size: 156.7 x 101.8 mm
Drill holes are not shown actual size because my PCB software is stupid!

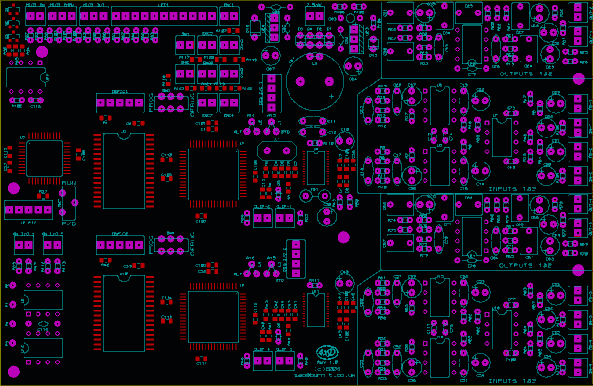

Component layout
Also, here is an actual-size (at 300dpi) printable TIFF version: pcb_components.tif
(Useful to print as a soldering guide, or if you just want to get an idea of the SMT soldering sizes)

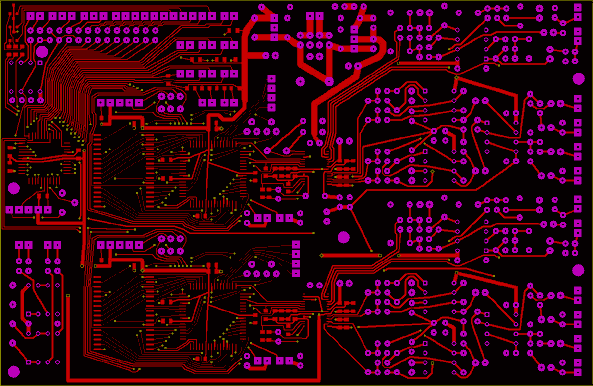

Top copper
(thru hole pads shown in pink, vias in gold).

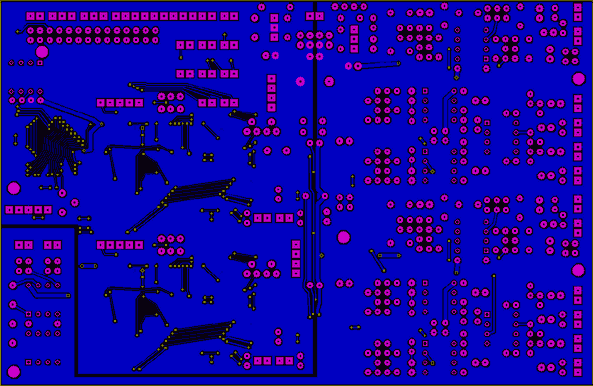

Bottom copper
(viewed from top, thru hole pads shown in pink, vias in gold).
